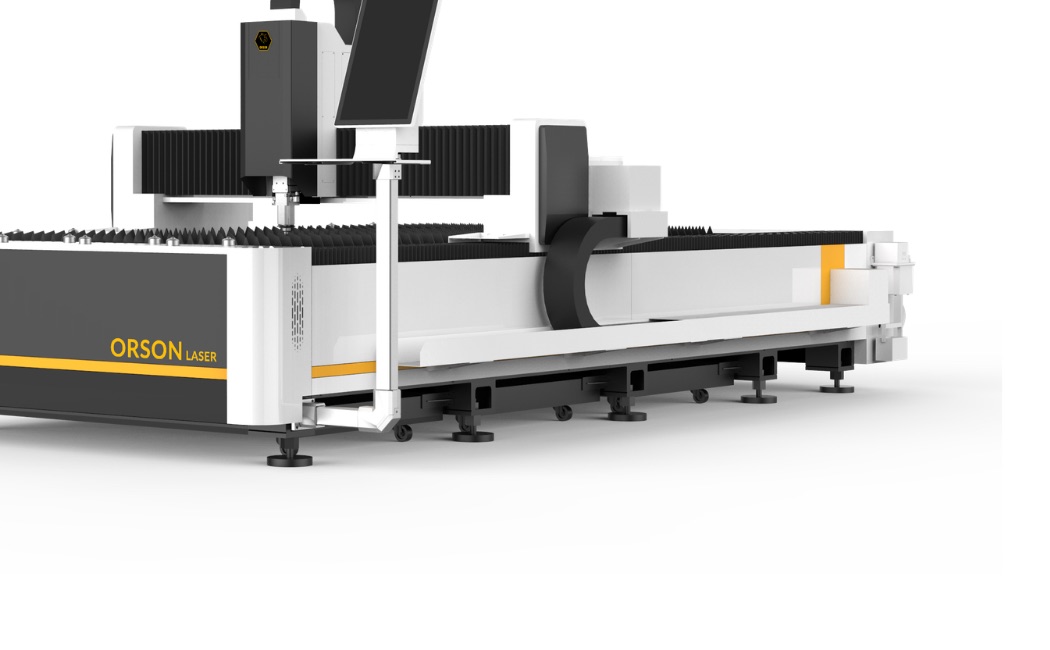

OA Series Premium Fibre Laser Cutting Machine
Premium Performance. Maximum Productivity. Built for the Industry.
The ORSON OA Premium Fibre Laser combines world-class industrial components, including a Raycus fibre laser source, BOCI BLT310 automatic-focusing cutting head, 1.8 kW servo motors, FSCUT CNC control system and S&A industrial chiller, to deliver exceptional speed, accuracy and reliability. Designed for high-volume manufacturing and precision fabrication, it offers outstanding cutting performance, low operating costs and dependable local support.
Why Choose the OA Series
Premium Fibre Laser Cutting for High-Volume Production
The OA Series is ORSON LASER's premium open bed fibre laser, built for high-volume manufacturing and precision fabrication, where faster cutting and fewer secondary operations translate directly into daily output.
The OA3015 pairs a 3 kW or 6 kW Raycus laser source with a BOCI BLT310 automatic-focusing cutting head, so the focal position is set by the system instead of being adjusted by hand when you change material or thickness. A BOCHU FSCUT 2000E controller and 1.8 kW Bochu servo motors deliver up to 2.0 g acceleration and 200 m/min maximum speed, the fastest in the ORSON sheet laser range, on a heavy plate-welded bed of around 2500 kg.
OA or OC?
The OA is an open bed machine with manual loading. If you want a fully enclosed cabin for operator protection and fume and noise reduction, plus an automatic exchange table for continuous loading, choose the OC Series.
Looking for a lower initial investment? The OAE Series offers the same working area with Raytools components, or compare all ORSON machines.
OA Series Sizes & Laser Options
OA3015 Specifications
| Specification | 3 kW | 6 kW |
|---|---|---|
| Machine Type | Flat Sheet Fibre Laser | |
| Bed Type | Open Bed – Manual Loading | |
| Bed Construction | Plate Welded | |
| Working Area | 3048 mm × 1524 mm | |
| Machine Weight | ± 2500 kg | |
| Laser Source | Raycus 3 kW | Raycus 6 kW |
| Laser Head | BOCI BLT310 | |
| Controller | BOCHU FSCUT 2000E | |
| Motor Brand | Bochu Servo | |
| Motor Size | 1800 W / 750 W | |
| Max Acceleration | 2.0 g | |
| Max Speed | 200 m/min | |
| Positioning Accuracy | ±0.03 mm | |
| Repeatability | ±0.02 mm | |
OA3015 Cut Parameters
| Material | Thickness | Cut Speed (m/min) |
|---|---|---|
| Carbon Steel | 1 mm | 28 – 35 |
| Carbon Steel | 16 mm (Max) | 0.6 – 0.7 |
| Stainless Steel | 1 mm | 28 – 35 |
| Stainless Steel | 8 mm (Max) | 1 – 1.2 |
| Aluminium | 1 mm | 25 – 30 |
| Aluminium | 6 mm (Max) | 1.5 – 2 |
| Material | Thickness | Cut Speed (m/min) |
|---|---|---|
| Carbon Steel | 1 mm | 45 – 60 |
| Carbon Steel | 22 mm (Max) | 0.5 – 0.6 |
| Stainless Steel | 1 mm | 45 – 60 |
| Stainless Steel | 16 mm (Max) | 0.5 – 0.6 |
| Aluminium | 1 mm | 45 – 60 |
| Aluminium | 12 mm (Max) | 0.8 – 1 |
All parameters rated for production.
Included & Optional Equipment
Included
- Material Collection Trolley
- Remote Control
- Safety Glasses (1× Set)
- Voltage Stabiliser (50 kVA)
- Touch Screen
- Fire Bricks
- Automated Lubrication (X, Y, Z)
- Extraction Fan
- Electronics Aircon
Optional
- Air Compressor (15 kW, 16 Bar, 42 CFM, Incl. Dryer)
OA3015 Power & Gas Requirements
Power – 3 kW
- Rated Power
- 24 kW (Excl. Air Compressor)
- Input Voltage
- 380 V AC 3-PH 50 Hz
- Input Current
- 46 A (60 A Breaker Recommended)
Power – 6 kW
- Rated Power
- 39 kW (Excl. Air Compressor)
- Input Voltage
- 380 V AC 3-PH 50 Hz
- Input Current
- 83 A (100 A Breaker Recommended)
Gas Requirements
- Compressed Air
- 16 Bar
- Nitrogen
- 18 – 23 Bar
- Oxygen
- 3 – 6 Bar
OA Series Questions
What thickness can the OA3015 cut?
With the 3 kW source, the OA3015 cuts carbon steel up to 16 mm, stainless steel up to 8 mm and aluminium up to 6 mm. The 6 kW source increases this to 22 mm carbon steel, 16 mm stainless steel and 12 mm aluminium. See the cut parameters above for production cutting speeds.
Why does the OA Series use an auto-focus cutting head?
The BOCI BLT310 sets the focal position automatically, which speeds up changeovers between materials and thicknesses and helps keep cut quality consistent across jobs.
What power supply does the OA3015 need?
Both versions run on 380 V AC three-phase 50 Hz. The 3 kW machine is rated at 24 kW with a 46 A input current (60 A breaker recommended). The 6 kW machine is rated at 39 kW with an 83 A input current (100 A breaker recommended). These figures exclude the air compressor.
What is included with the OA3015 as standard?
A material collection trolley, remote control, safety glasses, 50 kVA voltage stabiliser, touch screen, fire bricks, automated X, Y, Z lubrication, extraction fan and electronics aircon. A 15 kW, 16 bar air compressor with dryer is optional.
Do you install the machine and train operators?
Yes. ORSON LASER assists with installation and commissioning, trains your operators on machine operation, cutting parameters and maintenance, and provides ongoing technical support and advice on cutting consumables.
